What Is a Construction Gondola? Suspended Platform Types, Uses & How It Works

📅 Last updated: June 2026    ⏱ Reading time: ~9 minutes    📍 Region: India (Pan-India)

🏗️ What Is a Construction Gondola?

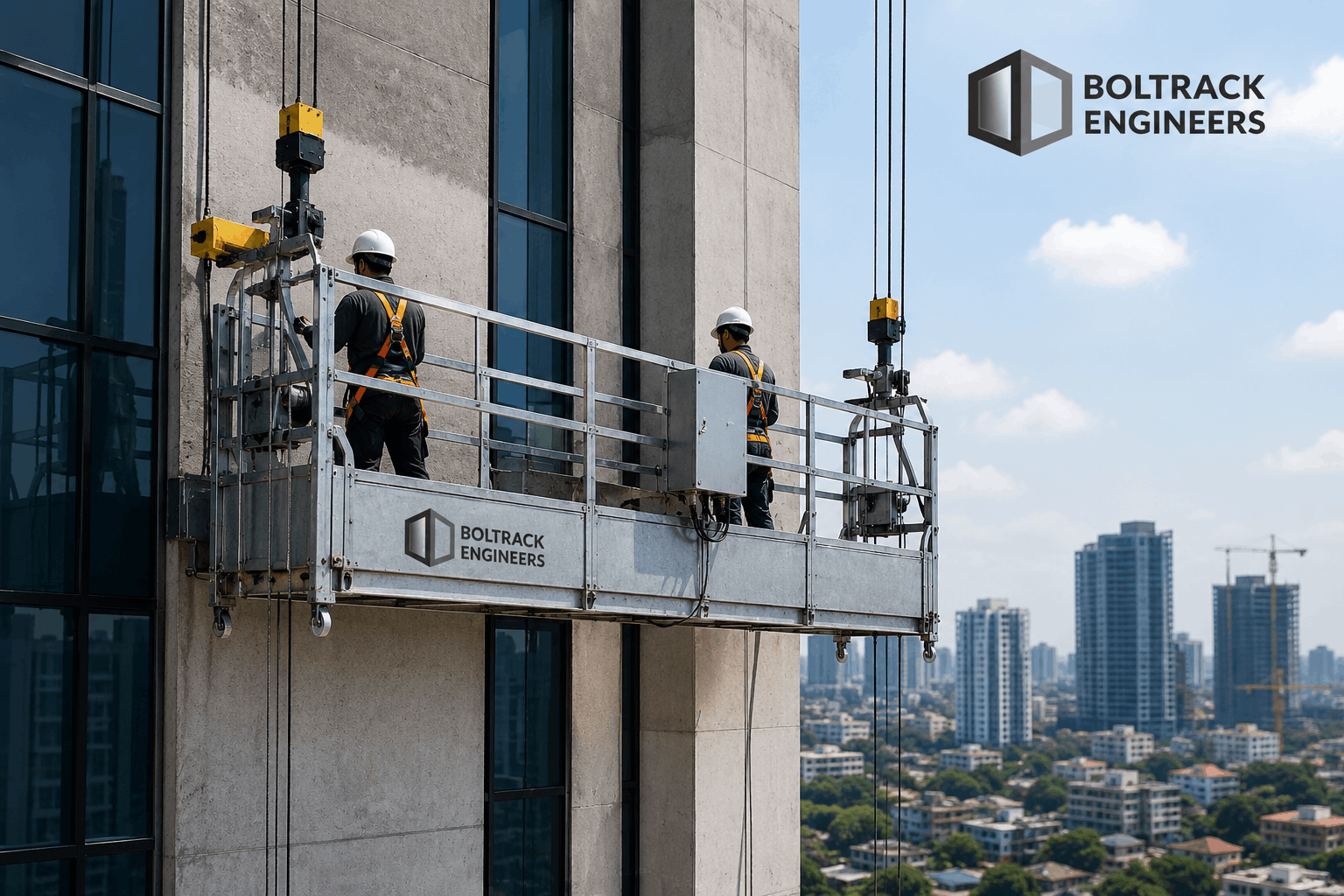

A construction gondola is a motorised, suspended work platform used to give workers safe access to the outside of a tall building. It hangs from the rooftop on steel wire ropes and is raised or lowered along the façade by electric hoists, letting a crew work at any height without erecting scaffolding from the ground.

The same machine goes by several names depending on the region and trade. You will hear it called a suspended platform, a cradle machine or suspended cradle, a rope suspended platform, or simply a gondola. They all describe the same category of equipment: a temporary, rope-suspended access platform for working at height.

In modern Indian construction, the gondola has largely replaced traditional bamboo or full-height steel scaffolding for high-rise façade work. It is faster to deploy, needs far less material, and can reach the 20th floor as easily as the 2nd — which is why it is now the default access method for residential towers, commercial complexes, glass-clad buildings and industrial chimneys.

⚙️ How Does a Suspended Platform Work?

A complete suspended platform system has three parts working together: the rooftop suspension that anchors everything, the wire ropes that carry the load, and the powered cradle that the workers stand in. Here is what each part does:

Component	What it does
Suspension mechanism	Outrigger beams with counterweights, or a parapet clamp, anchored on the roof to hold the ropes.
Wire ropes	A working rope and a separate safety rope (typically 50 m standard length) that carry and protect the cradle.
Electric hoists	Two LTD-series hoist motors climb the ropes to raise and lower the platform.
Steel cradle	The galvanised modular platform (commonly 1 m to 7.5 m long) where workers and tools sit.
Safety lock	A centrifugal safety lock grips the safety rope instantly if the platform tilts or over-speeds.
Control panel	Operates the hoists, with an emergency stop and upper/lower limit switches.

In operation, the crew enters the cradle at roof or ground level, and the operator uses the control panel to drive the hoists up or down the wire ropes. Because the load is balanced and the safety lock is always engaged on the second rope, the platform stays level and secure even if the primary rope fails.

→ Explore all Boltrack suspended platform systems

🧰 Types of Suspended Platforms & Gondolas

Not every façade is a flat rectangle, so suspended platforms come in several shapes and capacities. The right one depends on your building geometry, the load you need to carry, and the job. Here are the main types Boltrack manufactures:

Type	Capacity	Best for
ZLP800	800 kg	Painting, plastering & general façade work — the most common model.
ZLP1000	1,000 kg	Heavy façade work, larger crews, heavier tools.
L-Type platform	630–1,000 kg	Corners, balconies and non-linear façades that a straight cradle can’t reach.
Round / chimney platform	500–800 kg	Circular chimneys, silos and curved structures — a shaped cradle that wraps the surface.
Gondola platform	800 kg	Building maintenance, window cleaning and routine high-rise access.
Suspended cradle lift	800 kg	Façade cleaning and construction finishing on standard towers.

→ Compare every model on the Boltrack products page

🎯 Where Are Construction Gondolas Used?

A gondola earns its place anywhere a worker needs repeated, safe access to a vertical surface that is too tall for a ladder and too slow for ground scaffolding. The most common applications across Indian construction and maintenance are:

• Exterior painting & plastering — the single most common use; a gondola for painting work lets one crew cover an entire high-rise façade floor by floor.
• Glass façade & curtain-wall installation — positioning and sealing large glazing panels on commercial buildings.
• Building maintenance & window cleaning — ongoing upkeep of residential towers, IT parks and hotels.
• Chimney inspection & repair — using a circular platform shaped to the chimney’s curve.
• High-rise construction finishing — external rendering, joint sealing, cladding and final detailing.
• Façade cleaning & restoration — pressure-washing, anti-carbonation coating and heritage restoration work.

Because the platform travels the full height of the building, a single gondola can serve a project from the lowest floor to the rooftop, making it far more efficient than re-erecting scaffolding at every level. For circular structures, a dedicated chimney suspended platform is used instead of a standard rectangular cradle.

🆚 Gondola vs Scaffolding vs Other Access Methods

Contractors often weigh a gondola against fixed scaffolding or a boom lift. Each has its place — here is how they compare for high-rise façade work:

	Suspended gondola	Fixed scaffolding	Boom / cherry picker
Reach height	Unlimited (roof-hung)	Practical up to ~15 floors	Limited to boom length
Setup time	Hours	Days to weeks	Minutes (but needs ground access)
Material cost	Low — one cradle	High — full-height structure	Medium — daily hire
Ground footprint	None	Large	Large & mobile
Best for	Tall façades, repeat access	Low rise, heavy structural work	Quick, low-level spot jobs

For most high-rise painting, cleaning and finishing jobs in India, the gondola wins on speed, cost and reach — which is why “gondola scaffolding” has become the everyday term on Indian sites even though the gondola is technically a suspended access system, not scaffolding at all.

🔤 What Does ZLP Mean? Model Numbers Explained

If you have shopped for a suspended platform, you have seen names like ZLP630, ZLP800 and ZLP1000. ZLP is the standard industry series code for electrically operated suspended (temporary-installed) access platforms, and the number that follows is the most important part: it is the platform’s rated load capacity in kilograms.

• ZLP630 → rated for 630 kg — lighter work, smaller crews.
• ZLP800 → rated for 800 kg — the all-round standard for painting and plastering.
• ZLP1000 → rated for 1,000 kg — heavier façade work with bigger crews and tools.

So when you compare a ZLP800 and a ZLP1000, you are really comparing how much combined weight of workers, tools and material the cradle can safely hold. For most painting jobs the ZLP800 is sufficient; choose the ZLP1000 only when your crew and load genuinely exceed 800 kg.

🛡️ Suspended Platform Safety Standards

Working at height is the highest-risk activity on any site, so a gondola is only as good as its safety systems and the discipline of its crew. Internationally, suspended access equipment is governed by EN 1808:2015, the standard that sets design, stability and testing requirements for these machines. Well-built platforms follow its principles regardless of where they are sold.

On a live Indian site, the essentials are:

• A secondary safety rope with a centrifugal lock on every cradle, independent of the working rope.
• A full-body harness and lifeline for every worker, clipped to an independent anchor — never to the platform itself.
• Counterweights or parapet clamps correctly rated and installed for the platform load.
• Upper and lower limit switches and a working emergency stop on the control panel.
• Trained operators and compliance with India’s working-at-height rules under the BOCW (Building and Other Construction Workers) Act.

💰 Buy vs Rent a Construction Gondola

A new suspended platform costs roughly ₹2,55,000–₹2,68,000 for a ZLP800 and around ₹3,95,000 for a ZLP1000 (exclusive of 18% GST). Renting, by contrast, runs about ₹20,000–₹50,000 per month depending on city and model.

The rule of thumb: if you use a gondola for more than 10–12 months a year across multiple sites, buying pays off. For a single project lasting 1–6 months — which is most contractors — renting is the more economical choice and saves you storage and maintenance.

❓ Frequently Asked Questions

What is a gondola in construction?

A gondola in construction is a motorised suspended work platform that hangs from a building’s roof on steel wire ropes and moves up and down the façade using electric hoists. It gives workers safe access to the outside of tall buildings for painting, cleaning, repair and finishing work, without ground-up scaffolding. It is also called a suspended platform, cradle machine or rope suspended platform.

What is the difference between a gondola and scaffolding?

A gondola is a powered cradle suspended from the roof that travels up and down the façade, while scaffolding is a fixed structure built up from the ground. A gondola sets up in hours, has no ground footprint and can reach any height, making it faster and cheaper for tall façades. Scaffolding suits low-rise buildings and heavy structural work where a full platform at every level is needed.

What does ZLP mean in suspended platforms?

ZLP is the standard industry series code for electrically operated suspended access platforms. The number after it is the rated load capacity in kilograms — a ZLP800 carries 800 kg and a ZLP1000 carries 1,000 kg. For most painting and plastering jobs the ZLP800 is sufficient, while the ZLP1000 suits heavier façade work with larger crews.

Can a gondola be used for painting high-rise buildings?

Yes. Exterior painting and plastering is the single most common use of a construction gondola. A suspended platform lets one crew cover an entire high-rise façade floor by floor, moving smoothly from the rooftop down to ground level, which is far more efficient than erecting scaffolding at every level.

How much weight can a construction gondola hold?

Most construction gondolas are rated between 500 kg and 1,000 kg. The common ZLP800 holds 800 kg of combined workers, tools and material, while the ZLP1000 holds 1,000 kg. Chimney and round platforms typically range from 500 kg to 800 kg. Always select a model whose rated capacity exceeds your total expected load.

Can I rent a construction gondola instead of buying one?

Yes. Renting is usually more economical than buying unless you use the platform for more than 10–12 months a year across multiple sites. Rental in India costs roughly ₹20,000–₹50,000 per month depending on the city and model. Boltrack Engineers offers ZLP800, ZLP1000, L-Type, chimney and gondola platforms for both rent and sale across India.
