ZLP SERIES SUSPENDED PLATFORM
A dependable suspended access platform for facade work, high-rise maintenance, refurbishment, plastering, joint filling, and exterior installation projects.
Painting, glazing, plastering, repair, and facade maintenance
Residential towers, commercial elevations, industrial access work
ZLP 500, ZLP 630, ZLP 800, and ZLP 1000 configurations
Electric hoist-based suspended movement with safety lock support
ENGINEERED FOR REAL WORK AT HEIGHT
The ZLP series gives contractors a dependable suspended access system for recurring facade work, maintenance cycles, and high-rise fit-out tasks where controlled movement and practical safety systems matter.
The Boltrack ZLP Series Suspended Platform is built for reliable facade access on high-rise projects where safe vertical movement and stable working space are essential. It is suited to exterior painting, plastering, joint filling, glazing support, repair work, and routine building maintenance.
Each platform is engineered to give contractors a practical alternative to conventional scaffolding, with smoother installation, controlled lifting, and dependable safety systems for day-to-day use on demanding sites.
- Suitable for painting, refurbishment, sealing, repair, and window cleaning work
- Stable suspended access for residential, commercial, and industrial facades
- Configured with hoist, suspension mechanism, safety lock, and emergency stop controls
- Designed to improve access efficiency while reducing setup complexity on site
FULL ZLP SERIES TECHNICAL TABLE
This section now uses the full image-and-table layout shared by your team so visitors can review the complete model comparison in one place.
| Type | ZLP500 | ZLP630 | ZLP800 | ZLP1000 |
|---|---|---|---|---|
| Rated Load | 500KG | 630KG | 800KG | 1000KG |

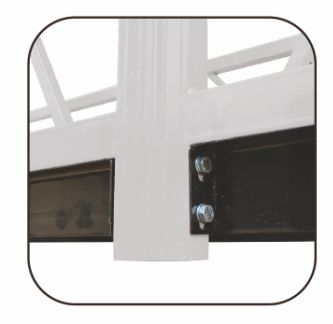

| Platform Size | 5 x 0.69 x 1.18 | 6 x 0.69 x 1.18 | 7.5 x 0.69 x 1.18 | 7.5 x 0.69 x 1.18 |
| Platform Material | Steel type with hot galvanized, steel | Steel type with hot galvanized, steel | Steel type with hot galvanized, steel | Steel type with hot galvanized, steel |
| Wire Rope Height | 0-200m | 0-200m | 0-200m | 0-200m |
| Electrical Cable | (3x2.5+2x1.5mm2) 0-200m | (3x2.5+2x1.5mm2) 0-200m | (3x2.5+2x1.5mm2) 0-200m | (3x2.5+2x1.5mm2) 0-200m |
| Working Height | 0-200m | 0-200m | 0-200m | 0-200m |
| Steel Rope | 4pcs x 100m | Ф8.3mm | Ф8.6mm | Ф9.1mm |

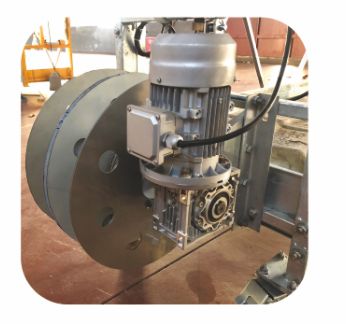

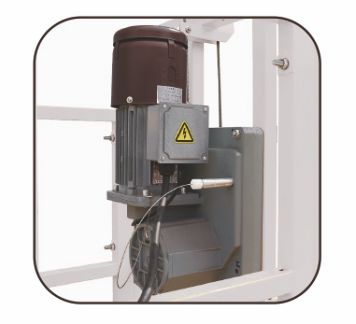

| Hoist Model | LTD5.0 | LTD6.3 | LTD8.0 | LTD10.0 |
| Hoisting Machinery (Copper winding) | 1.5kw x 2 | 1.5kw x 2 | 1.8kw x 2 | 2.2kw x 2 |
| Hoist Safety Capacity | 15KN | 15KN | 15KN | 15KN |
| Lifting Speed | 9.3m/min ± 5% | 9.3m/min ± 5% | 9.3m/min ± 5% | 9.3m/min ± 5% |

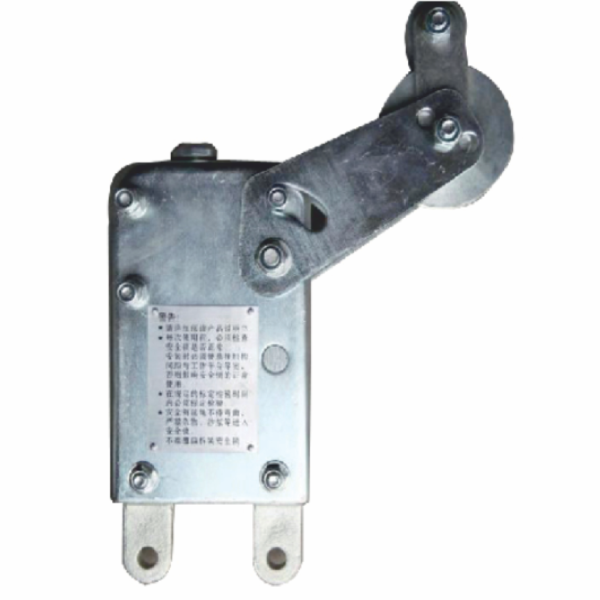

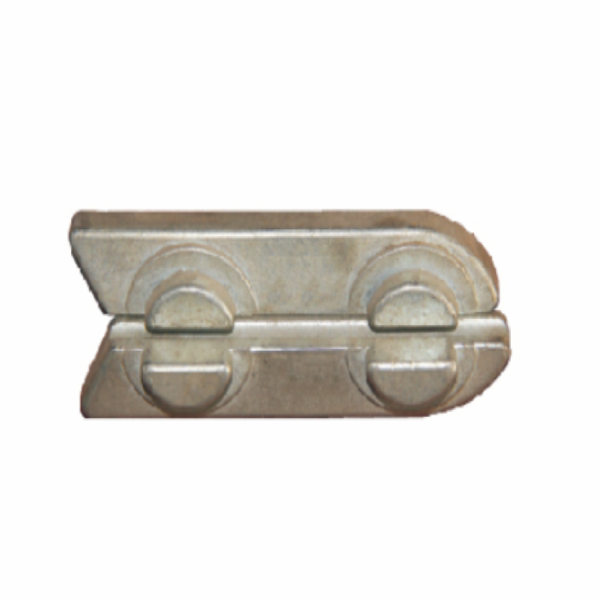

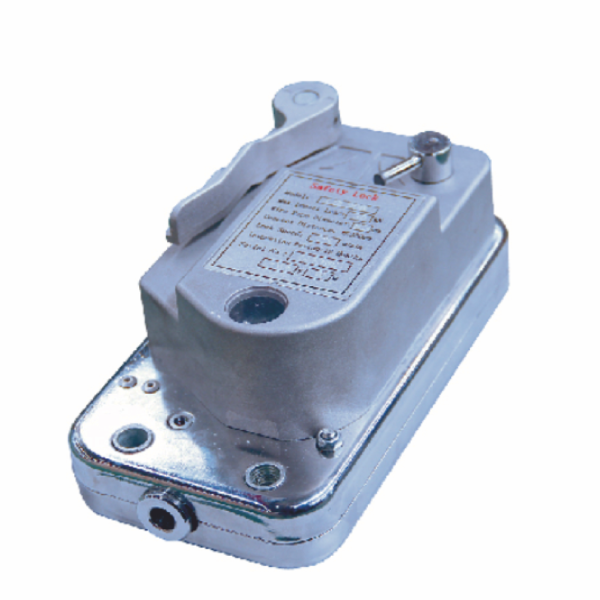

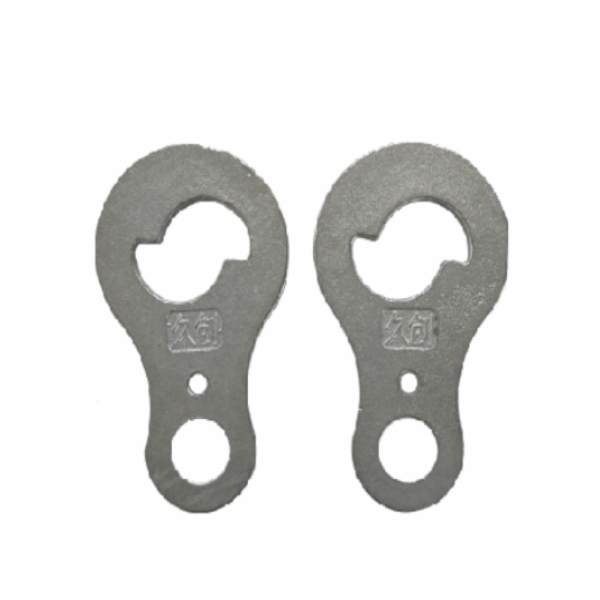

| Safety Lock Model | LSG20 | LSG20 | LSG30 | LSG30 |
| Safety Lock | 20KN | 20KN | 30KN | 30KN |
| Locking Cable Angle | 3°~8° | 3°~8° | 3°~8° | 3°~8° |
| Suspension Mechanism Hot Galvanized | Front beam overhang: 1.3 m / Support adjustable height: 1.1~1.6m | Front beam overhang: 1.3 m / Support adjustable height: 1.1~1.6m | Front beam overhang: 1.3 m / Support adjustable height: 1.1~1.6m | Front beam overhang: 1.3 m / Support adjustable height: 1.1~1.6m |
| Power Source | 380V/50HZ 3Phase, 220V/60HZ 3Phase, 220V/60HZ single phase | 380V/50HZ 3Phase, 220V/60HZ 3Phase, 220V/60HZ single phase | 380V/50HZ 3Phase, 220V/60HZ 3Phase, 220V/60HZ single phase | 380V/50HZ 3Phase, 220V/60HZ 3Phase, 220V/60HZ single phase |
| Counter Weight | 800kg | 1000kg | 1000kg | 1200kg |
MADE FOR FACADE ACCESS
This platform range is suited to day-to-day high-rise exterior work where teams need stable suspended access without the time and site obstruction of traditional scaffolding.
ANTI-TILT & OVERSPEED PROTECTION
The ZLP series is configured around practical suspended-access safety systems, including anti-tilt locking and overspeed locking devices that help crews work with better control when site conditions change.
Frequently Asked Questions
The ZLP Series is a lightweight suspended access platform designed for tasks such as painting, decorating, refurbishing, jointing, repairs, and window cleaning on building facades. It consists of a working platform, hoist system, wire ropes, and safety devices.
Each platform includes a service brake in the LTD hoist, upper limit switch, no-power descent for power failures, optional load limit protector, two safety lock devices on wire ropes, emergency stop button, and optional phase loss protector.
The ZLP Series platforms can operate at heights up to 100 metres depending on the model and configuration, making them suitable for mid-rise and high-rise building maintenance.
Yes, Boltrack Engineers offers ZLP Series platforms on both sale and rental basis with pan-India delivery and on-site installation support.
Standard ZLP platforms support rated loads from 500 kg to 1000 kg depending on the model (ZLP 500, ZLP 630, ZLP 800, ZLP 1000), suitable for 2-4 operators with tools and materials.
