Cantilever Crane Loading Platform
The safe, convenient, and easy-to-use solution for accessing buildings when lifting loads with a crane, available in 3-ton, 5-ton, and 5-to-6-ton variants.
Built for
High-Rise Loading Access
The Boltrack cantilever crane loading platform is built for residential and commercial high-rise construction where materials must be loaded and unloaded safely from floor level using a crane. The platform slides out from the building face, clamps securely with extending props, and arrives ready for practical site deployment.
Across the range, Boltrack platforms are designed to suit different space conditions and load demands, from tighter openings with lighter lifts to large loading decks carrying up to 5000 to 6000 kg. Each platform is engineered around safe access, easier material flow, and efficient multi-storey loading operations.
SITE-READY DETAILS
Shared brochure features across the cantilever range, focused on safe loading access, secure clamping, and practical transport between projects.
BROCHURE ADVANTAGES
The core reasons presented in the brochure for choosing the Boltrack cantilever range for multi-storey lifting and loading operations.
Loading platforms are designed and engineered by Boltrack with direct design-team support for project and technical queries.
The range is built to suit space, time, and workflow needs, covering both 2200 mm compact models and the wider 3400 mm heavy-duty option.
Each platform is thoroughly tested in dedicated facilities and checked by trained QA personnel before delivery.
Construction-industry experience across sale, transport, and installation keeps the system practical and cost-effective for high-rise work.
Brochure variants provide rated loading capacities up to 6000 kg, helping teams match the platform to project demands.
CRANE LOADING PLATFORM MODELS
Three brochure-defined variants cover compact floor plates, heavy loads in constrained spaces, and maximum deck area for large material handling.
The smallest and lightest platform in the range, designed for residential and commercial high-rise projects where internal floor space is limited.
Compact-width platform for heavier loading duties where the floor plan is constrained but large volumes or heavy materials still need to be handled.
The widest loading deck in the range, intended for oversized materials, large loading areas, and very heavy lifts on demanding projects.
MODEL SELECTION
Brochure-aligned comparison of the three crane loading platform variants so the right deck size and load rating can be selected for the project.
| Specification | BE-2200-3 TON | BE-2200-5 TON | BE-3400-5 TON / 6 TON |
|---|---|---|---|
| Best For | Smaller space with lighter loading | Limited space with heavier loading | Large loading area with very heavy loads |
| Platform Width | 2200 mm | 2200 mm | 3400 to 3450 mm |
| Internal Depth / Width | - | 1742 mm | 2944 mm |
| Required In-Building Length | 3450 mm | 3450 mm | 3450 mm |
| Safe Working / Max Load | 3000 kg | 5000 kg | 5000 to 6000 kg |
| Outboard 4500 mm | - | 5000 kg | 5000 kg |
| Outboard 4750 mm | - | 4500 kg | 4500 kg |
| Outboard 5000 mm | - | 4000 kg | 4000 kg |
| RA Reaction | 4.15 t | - | - |
| RB Reaction | 2.12 t | - | - |
| RG Reaction | -0.32 t | - | - |

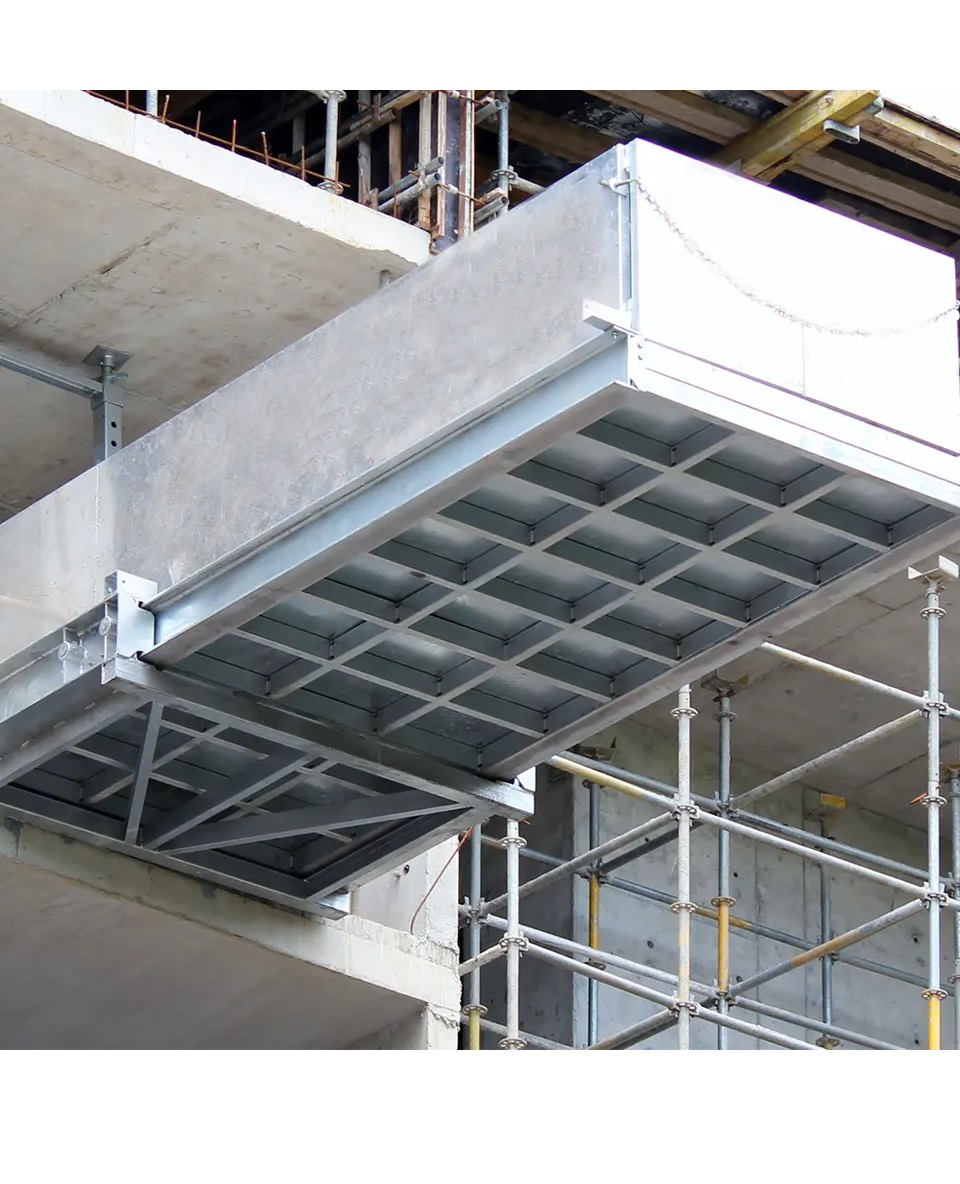

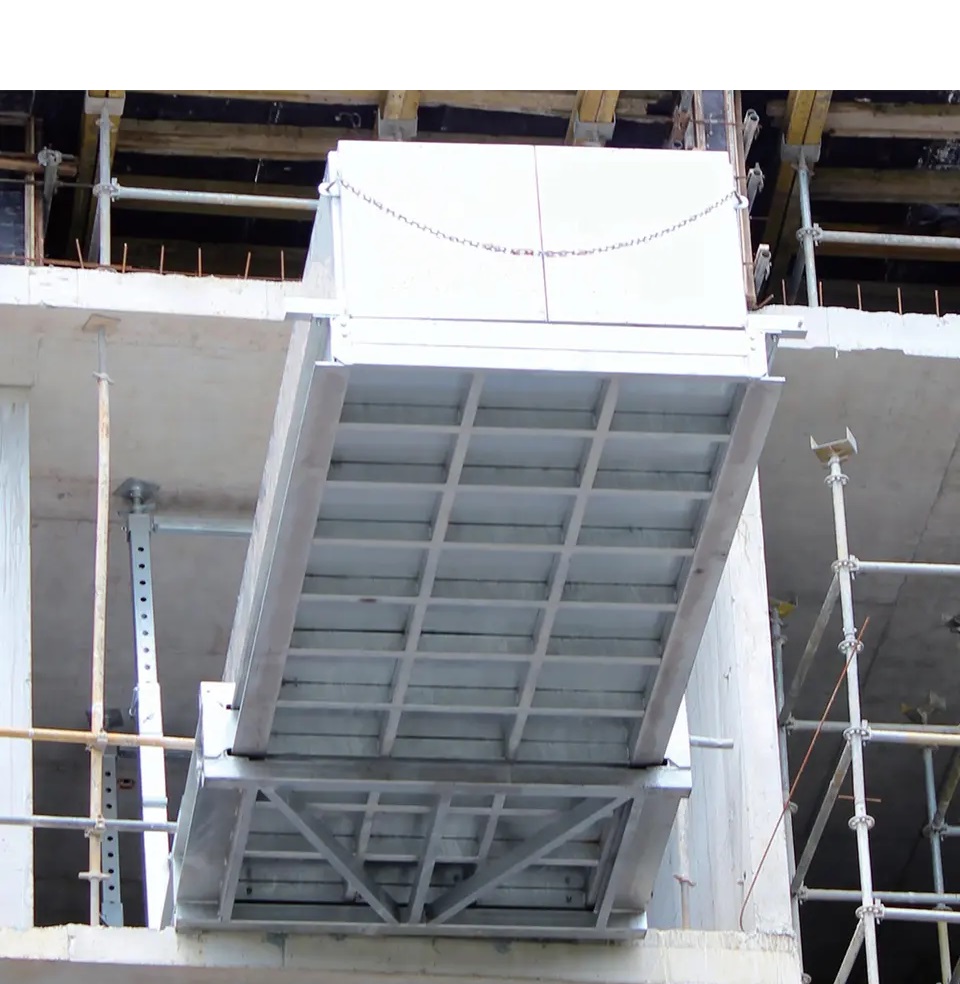

CANTILEVER VISUALS
Clean product visuals matched from the brochure set and local docs images, focused on the actual platform rather than full-page brochure screenshots.
Frequently Asked Questions
A cantilever crane loading platform is a projecting structure mounted on building floors that extends outward to provide a loading/unloading area for materials being lifted by a crane, eliminating the need for scaffold loading bays.
Boltrack cantilever crane loading platforms support rated loads from 1 to 3 tonnes depending on the configuration, suitable for handling construction materials, equipment, and prefabricated components.
The platform is anchored to the building floor slab or structural beams using high-strength bolts and counterweight systems. Installation is quick and does not require permanent modifications to the building structure.
Yes, the platform is designed for easy relocation between floors as construction progresses, with quick-release anchoring systems that allow repositioning within a few hours.
Yes, Boltrack Engineers offers cantilever crane loading platforms on both sale and rental basis with delivery, installation, and safety inspection services included.
Request a Quote Today
Tell us about your project, model preference, site dimensions, and whether you need rental or purchase support. Our team responds quickly.
